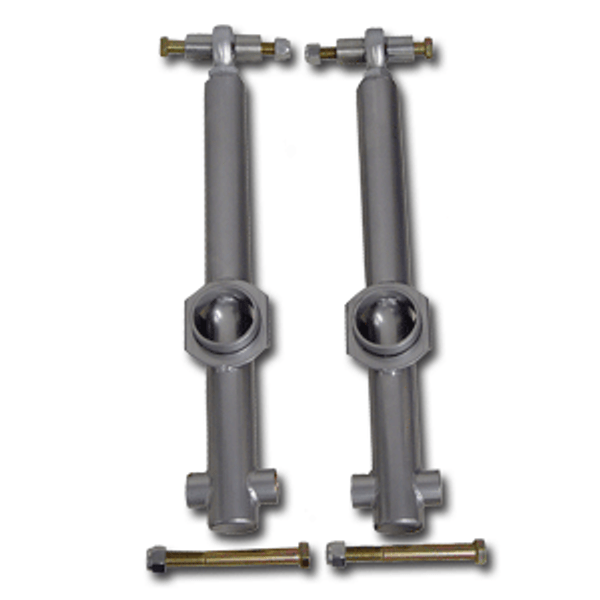

UPR 1999-2004 Mustang Extreme Series Chrome Moly Adj Lower Control Arms 2002-01-99-R

UPR Extreme Series Adjustable Race Lower Control Arms set the industry standard for race lower control arms in 1998 and haven't looked back. 4130 Chrome Moly .083 wall thickness tubing CNC machined and Tig welded in Billet Steel Fixtures for a perfect fit every time. Stainless Steel sleeves and 1/2" (79-98) or 9/16" (99-04) Grade 8 Hardware matched with high strength chrome moly rod ends that are self sealing, self lubricating and teflon lined. All of our Suspension Products are made with the Highest Quality materials and most expensive components. We spare no expense on our products and always stand behind them with our Lifetime warranty that no one else offers.



» Single Adjustable
» 1.5-2 hour Installation

» Tig Welded in Billet fixtures
» High Strength Chrome Moly Rod Ends
» High Gloss Silver Powder Coated Finish
» Chrome Moly Tubing .083 Wall Thickness
» Extreme Duty 1/2" Grade 8 Hardware Included

» Stainless Steel Sleeves in the front and 6061 Bushing in the back



Installs in 1.5 to 2 hours with basic hand tools. Installation requires the removal of the rear sway bar and drilling out the rear end and body side mounting locations to either 1/2" or 9/16". 79-98 is .474" (12mm) from the factory and 99-04 is .548" (14mm) from the factory. These factory mounting holes take a beating over time so opening them up to 1/2" (.500") or 9/16" (.563") cleans up any deformation and eliminates any play in the bolt holes.



FITMENT:

1999 2000 2001 2002 2003 2004 LX GT GTS Bullitt Mach 1 Mustang Cobra Roush Saleen & Vehicles..
